BLISTER Loader

Key Takeaways

• BLISTER is a loader that continues to stay under the radar, actively being used to load a variety of malware including clipbankers, information stealers, trojans, ransomware, and shellcode
• In-depth analysis shows heavy reliance of Windows Native API’s, several injection capabilities, multiple techniques to evade detection, and counter static/dynamic analysis
• Elastic Security is providing a configuration extractor that can be used to identify key elements of the malware and dump the embedded payload for further analysis
• 40 days after the initial reporting on the BLISTER loader by Elastic Security, we observed a change in the binary to include additional architectures. This shows that this is an actively developed tool and the authors are watching defensive countermeasures

For information on the BLISTER malware loader and campaign observations, check out our blog post and configuration extractor detailing this:

• BLISTER Campaign Analysis
• BLISTER Configuration Extractor

Overview

The Elastic Security team has continually been monitoring the BLISTER loader since our initial release at the end of last year. This family continues to remain largely unnoticed, with low detection rates on new samples.

A distinguishing characteristic of BLISTER’s author is their method of tampering with legitimate DLLs to bypass static analysis. During the past year, Elastic Security has observed the following legitimate DLL’s patched by BLISTER malware:

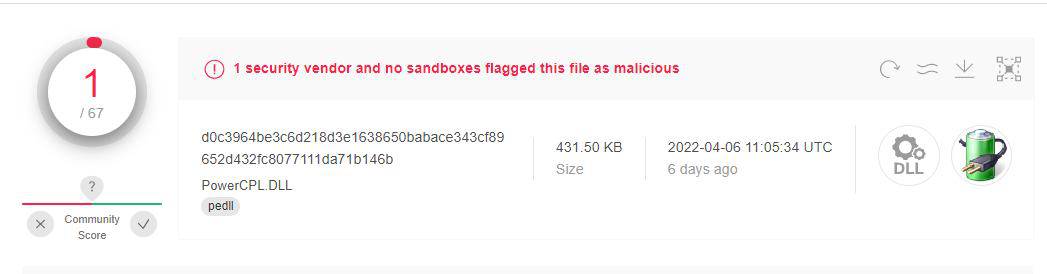

Due to the way malicious code is embedded in an otherwise benign application, BLISTER may be challenging for technologies that rely on some forms of machine learning. Combined with code-signing defense evasion, BLISTER appears designed with security technologies in mind.

Our research shows that BLISTER is actively developed and has been linked in public reporting to LockBit ransomware and the SocGholish framework; in addition, Elastic has also observed BLISTER in relation to the following families: Amadey, BitRAT, Clipbanker, Cobalt Strike, Remcos, and Raccoon along with others.

In this post, we will explain how BLISTER continues to operate clandestinely, highlight the loader’s core capabilities (injection options, obfuscation, and anti-analysis tricks) as well as provide a configuration extractor that can be used to dump BLISTER embedded payloads.

Consider the following sample representative of BLISTER for purposes of this analysis. This sample was also used to develop the initial BLISTER family YARA signature, the configuration extraction script, and evaluate tools against against unknown x32 and x64 BLISTER samples.

Execution Flow

The execution flow consists of the following phases:

• Deciphering the second stage
• Retrieving configuration and packed payload
• Payload unpacking
• Persistence mechanisms
• Payload injection

Launch / Entry Point

During the first stage of the execution flow, BLISTER is embedded in a legitimate version of the colorui.dll library. The threat actor, with a previously achieved foothold, uses the Windows built-in rundll32.exe utility to load BLISTER by calling the export function LaunchColorCpl :

Rundll32 execution arguments

rundll32.exe "BLISTER.dll,LaunchColorCpl"

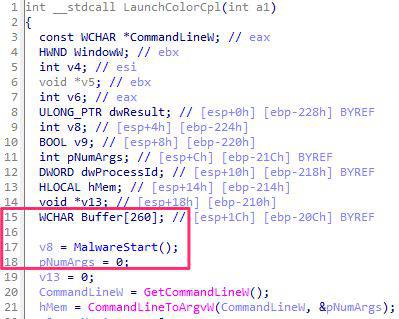

The image below demonstrates how BLISTER’s DLL is modified, noting that the export start is patched with a function call (line 17) to the malware entrypoint.

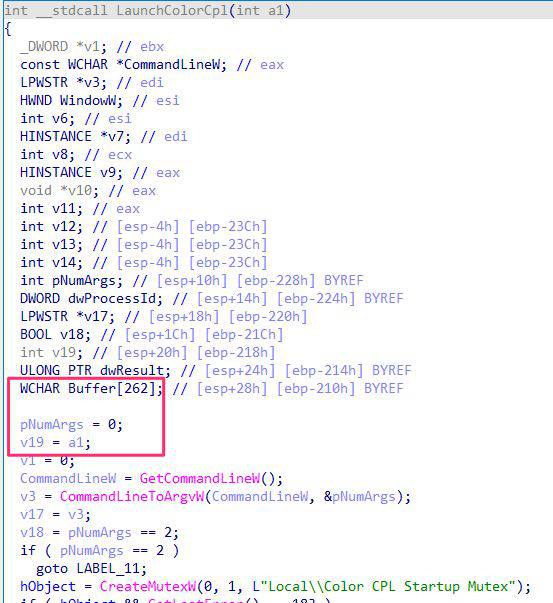

If we compare one of these malicious loaders to the original DLL they masquerade as, we can see where the patch was made, the function no longer exists:

Deciphering Second Stage

BLISTER’s second stage is ciphered in its resource section (.rsrc).

The deciphering routine begins with a loop based sleep to evade detection:

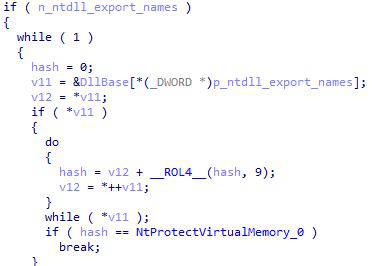

BLISTER then enumerates and hashes each export of ntdll, comparing export names against loaded module names; searching specifically for the NtProtectVirtualMemory API:

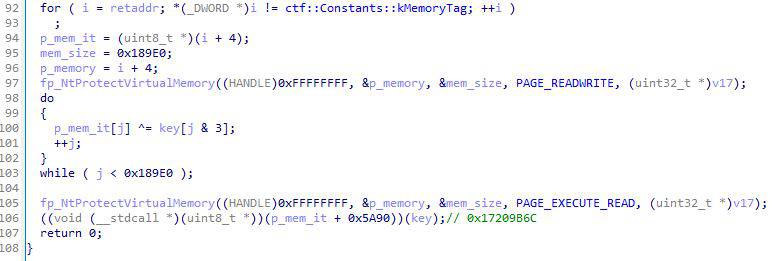

Finally, it looks for a memory region of 100,832 bytes by searching for a specific memory pattern, beginning its search at the return address and leading us in the .rsrc section. When found, BLISTER performs an eXclusive OR (XOR) operation on the memory region with a four-byte key, sets it’s page protection to PAGE_EXECUTE_READ with a call to NtProtectVirtualMemory, and call its second stage entry point with the deciphering key as parameter:

Obfuscation

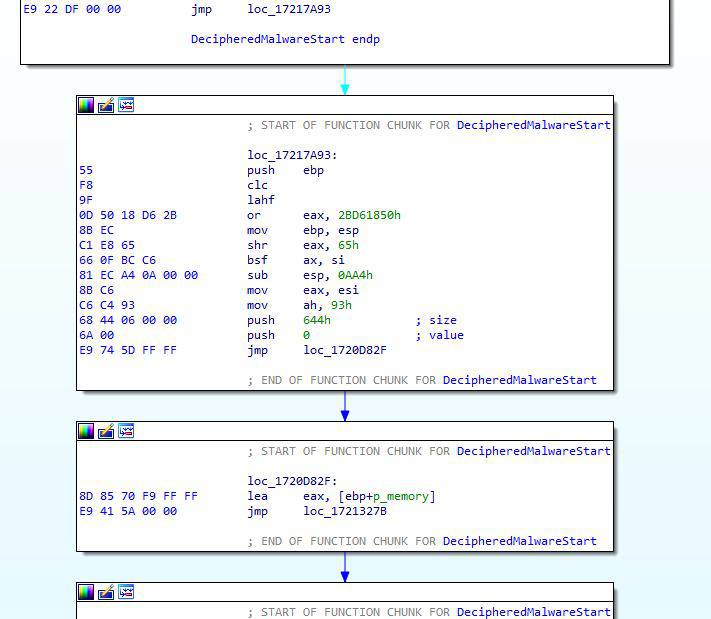

BLISTER’s second-stage involves obfuscating functions, scrambling their control flow by splitting their basic blocks with unconditional jumps and randomizing basic blocks’ locations. An example of which appears below.

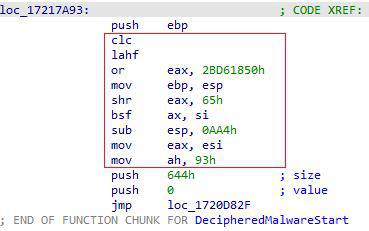

BLISTER inserts junk code into basic blocks as yet another form of defense evasion, as seen below.

Retrieving Configuration and Packed Payload

BLISTER uses the previous stage’s four-byte key to locate and decipher its configuration.

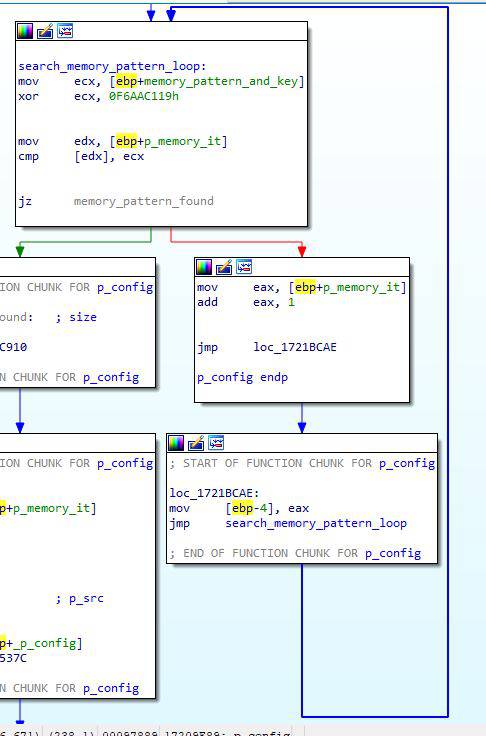

The routine begins by searching its memory, beginning at return address, for its four-byte key XORed with a hardcoded value as memory pattern:

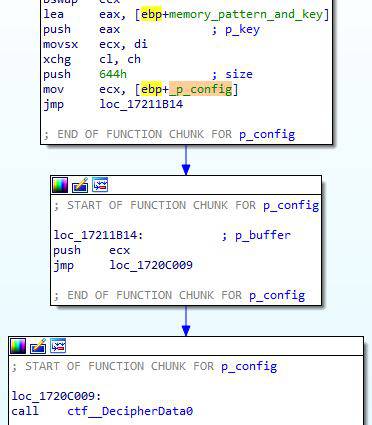

When located, the 0x644 byte configuration is copied and XOR-decrypted with the same four-byte key:

Finally, it returns a pointer to the beginning of the packed PE, which is after the 0x644 byte blob:

See the configuration structure in the appendix.

Time Based Anti Debug

After loading the configuration, and depending if the kEnableSleepBasedAntiDebug flag (0x800) is set, BLISTER calls its time-based anti-debug function:

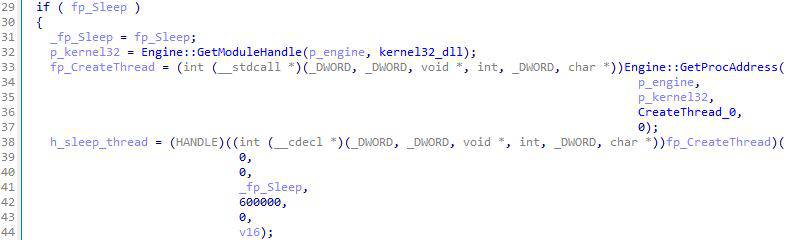

This function starts by creating a thread with the Sleep Windows function as a starting address and 10 minutes as the argument:

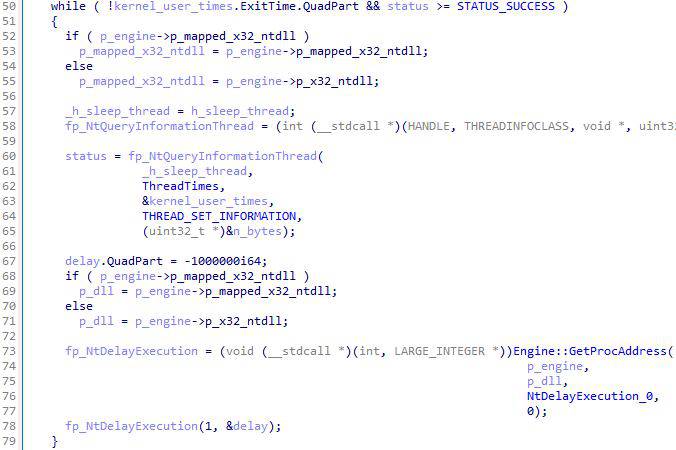

The main thread will sleep using NtDelayExecution until the sleep thread has exited:

Finally the function returns 0 when the sleep thread has run at least for 9 1/2 minutes:

If not, the function will return 1 and the process will be terminated:

Windows API

Blister’s GetModuleHandle

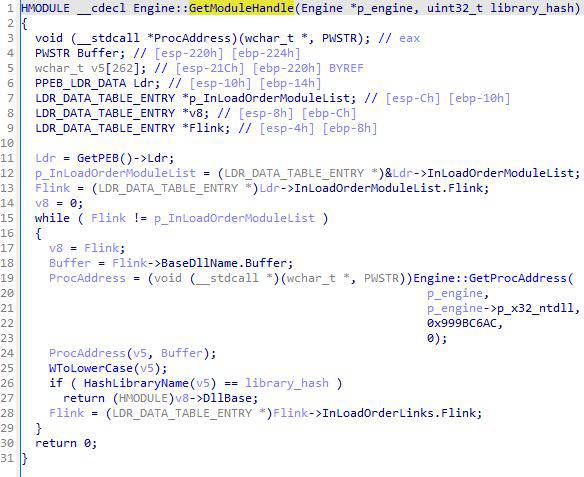

BLISTER implements its own GetModuleHandle to evade detection, the function takes the library name hash as a parameter, iterates over the process PEB LDR’s modules and checks the hashed module’s name against the one passed in the parameter:

Blister’s GetProcAddress

BLISTER’s GetProcAddress takes the target DLL and the export hash as a parameter, it also takes a flag that tells the function that the library is 64 bits.

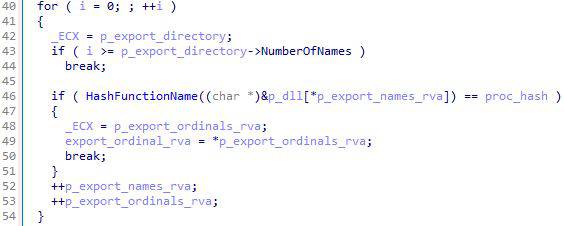

The DLL can be loaded or mapped then the function iterates over the DLL’s export function names and compares their hashes with the ones passed in the parameter:

If the export is found, and its virtual address isn’t null, it is returned:

Else the DLL is LdrLoaded and BLISTER’s GetProcAddress is called again with the newly loaded dll:

Library Manual Mapping

BLISTER manually maps a library using NtCreateFile in order to open a handle on the DLL file:

Next it creates a section with the handle by calling NtCreateSection with the SEC_IMAGE attribute which tells Windows to loads the binary as a PE:

NtCreateSection used within mapping function

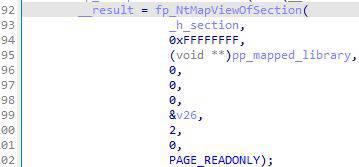

Finally it maps the section with NtMapViewOfSection :

x32/x64 Ntdll Mapping

Following the call to its anti-debug function, BLISTER manually maps 32 bit and 64 bit versions of NTDLL.

It starts by mapping the x32 version:

Then it disables SysWOW64 redirection:

And then maps the 64 bit version:

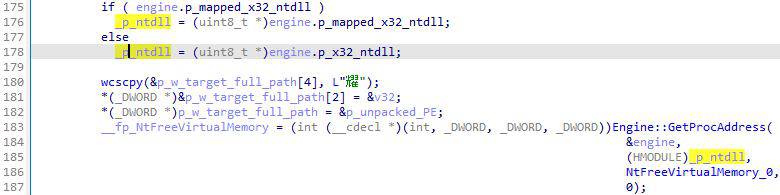

Then if available, the mapped libraries will be used with the GetProcAddress function, i.e:

LdrLoading Windows Libraries and Removing Hooks

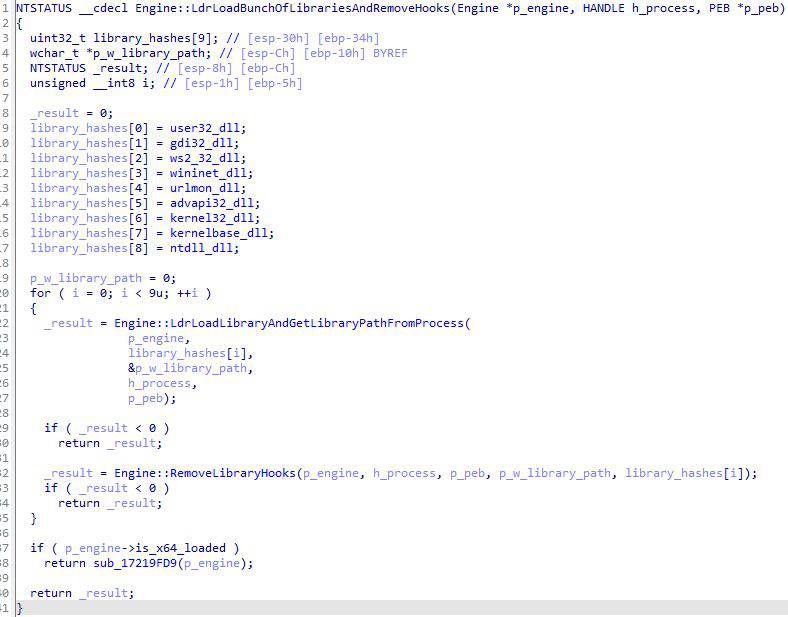

After mapping 32 and 64 bit NTDLL versions BLISTER will LdrLoad several Windows libraries and remove potential hooks:

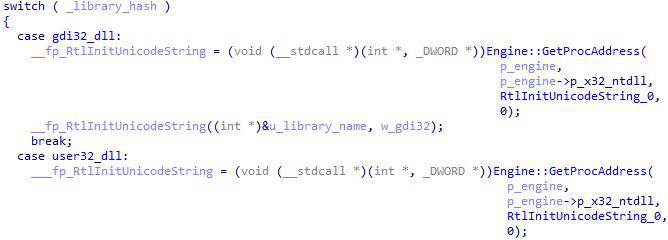

First, it tries to convert the hash to the library name by comparing the hash against a fixed list of known hashes:

If the hash is found BLISTER uses the LdrLoad to load the library:

Then BLISTER searches for the corresponding module in its own process:

And maps a fresh copy of the library with the module’s FullDllName :

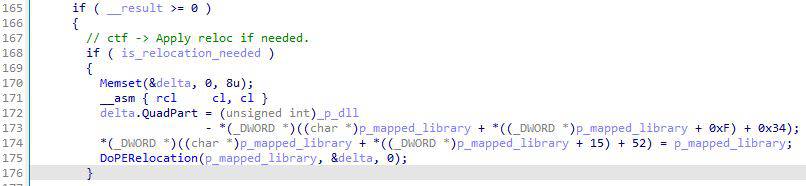

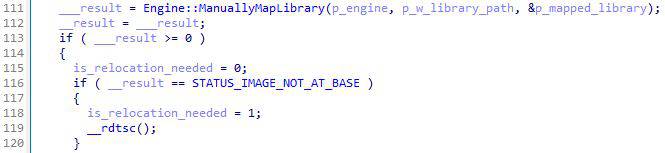

BLISTER then applies the relocation to the mapped library with the loaded one as the base address for the relocation calculation:

Next BLISTER iterates over each section of the loaded library to see if the section is executable:

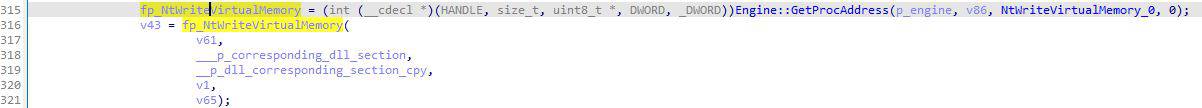

If the section is executable, it is replaced with the mapped one, thus removing any hooks:

x64 API Call

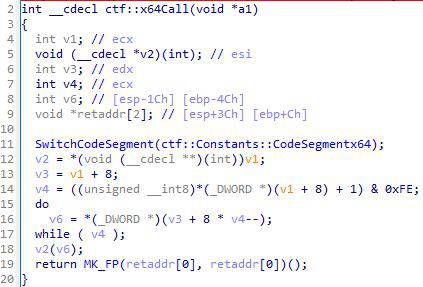

BLISTER can call 64-bit library functions through the use of special 64-bit function wrapper:

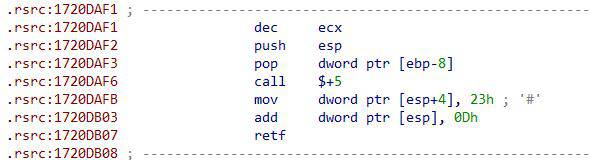

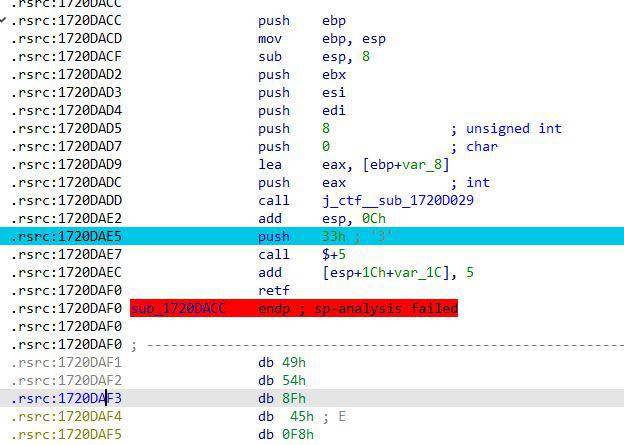

To make this call BLISTER switches between 32-bit to 64-bit code using the old Heaven’s Gate technique:

Unpacking Payload

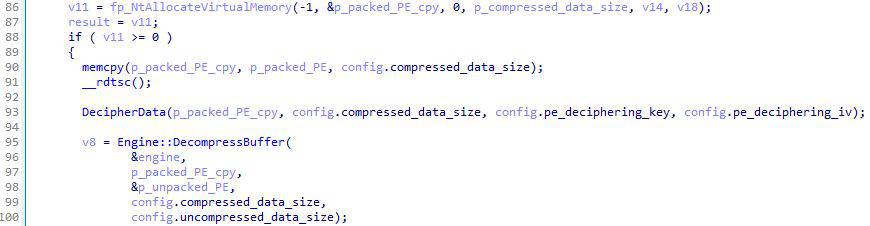

During the unpacking process of the payload, the malware starts by allocating memory using NtAllocateVirtualMemory and passing in configuration information. A memcpy function is used to store a copy of encrypted/compressed payload in a buffer for next stage (decryption).

Deciphering

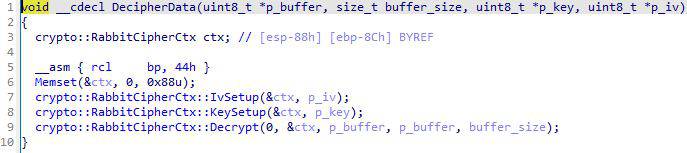

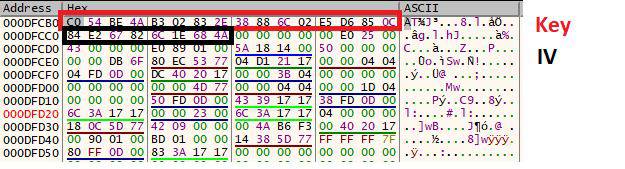

BLISTER leverages the Rabbit stream cipher, passing in the previously allocated buffer containing the encrypted payload, the compressed data size along with the 16-byte deciphering key and 8-byte IV.

Decompression

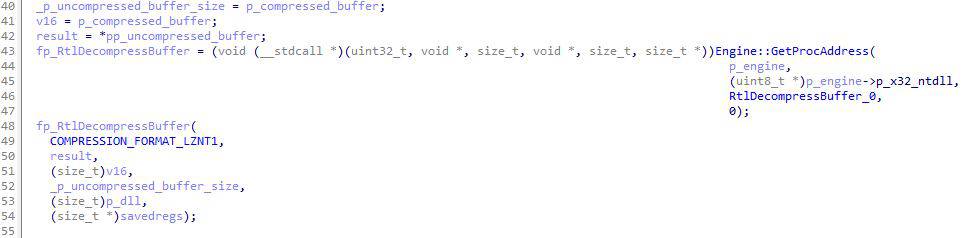

After the decryption stage, the payload is then decompressed using RtlDecompressBuffer with the LZNT1 compression format.

Persistence Mechanism

To achieve persistence, BLISTER leverages Windows shortcuts by creating an LNK file inside the Windows startup folder. It creates a new directory using the CreateDirectoryW function with a unique hardcoded string found in the configuration file such as: C:\ProgramDataUNIQUE STRING\\>

BLISTER then copies C:\System32\rundll32.exe and itself to the newly created directory and renames the files to UNIQUE STRING\>.exe and UNIQUE STRING\>.dll, respectively.

BLISTER uses the CopyModuleIntoFolder function and the IFileOperation Windows COM interface for bypassing UAC when copying and renaming the files:

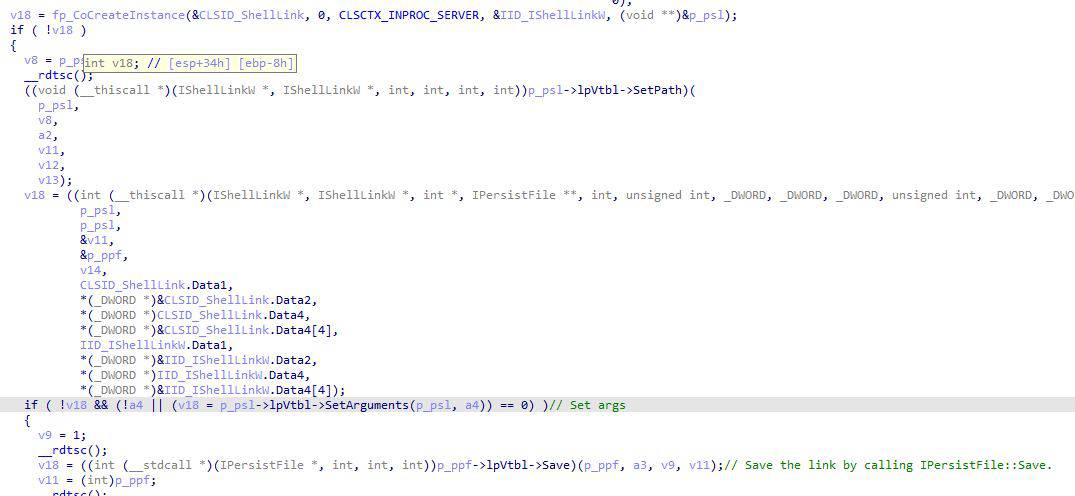

The malware creates an LNK file using IShellLinkW COM interface and stores it in C:\Users\<username>\AppData\Roaming\Microsft\Windows\Start Menu\Startup as UNIQUE STRING\\>.lnk

The LNK file is set to run the export function LaunchColorCpl of the newly copied malware with the renamed instance of rundll32. C:\ProgramData\UNIQUE STRING\>\UNIQUE STRING\>.exe C:\ProgramData\UNIQUE STRING\>\UNIQUE STRING\>.dll,LaunchColorCpl

Injecting Payload

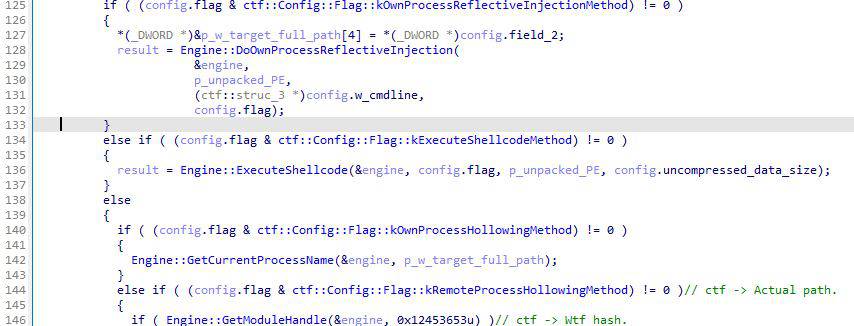

BLISTER implements 3 different injection techniques to execute the payload according to the configuration flag:

Shellcode Execution

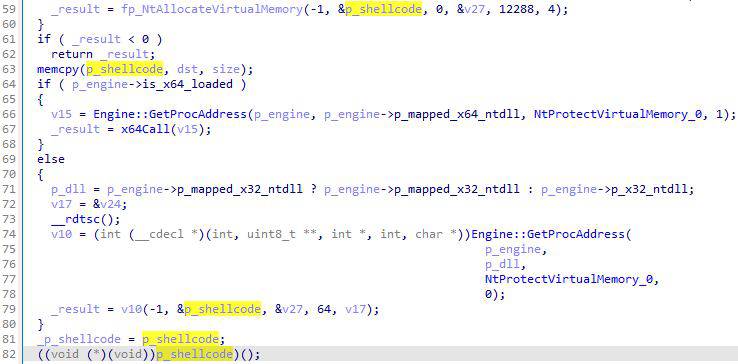

After decrypting the shellcode, BLISTER is able to inject it to a newly allocated read write memory region with NtAllocateVirtualMemory API, it then copies the shellcode to it and it sets the memory region to read write execute with NtProtectVirtualMemory and then executes it.

Own Process Injection

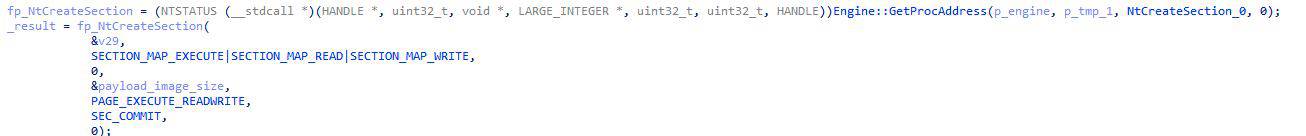

BLISTER can execute DLL or Executable payloads reflectively in its memory space. It first creates a section with NtCreateSection API.

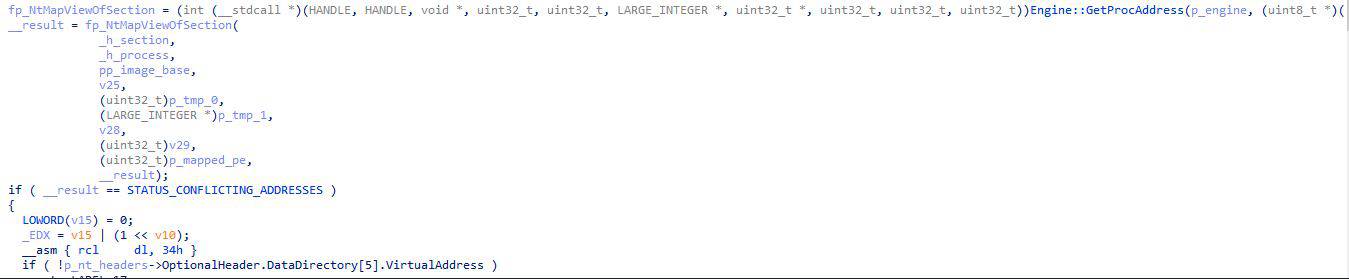

BLISTER then tries to map a view on the created section at the payload’s preferred base address. In case the preferred address is not available and the payload is an executable it will simply map a view on the created section at a random address and then do relocation.

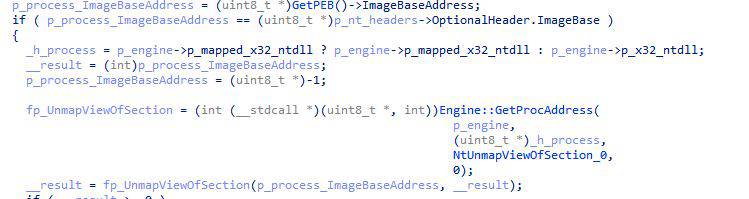

Conversly, if the payload is a DLL, it will first unmap the memory region of the current process image and then it will map a view on the created section with the payload’s preferred address.

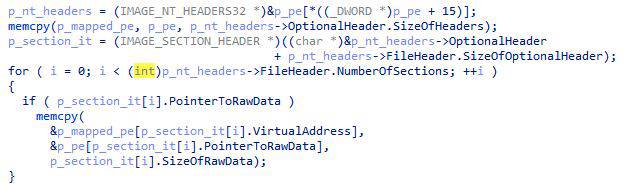

BLISTER then calls a function to copy the PE headers and the sections.

Finally, BLISTER executes the loaded payload in memory starting from its entry point if the payload is an executable. In case the payload is a DLL, it will find its export function according to the hash in the config file and execute it.

Process Hollowing

BLISTER is able to perform process hollowing in a remote process:

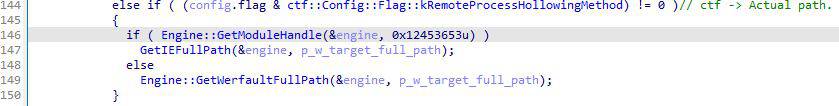

First, there is an initial check for a specific module hash value (0x12453653), if met, BLISTER performs process hollowing against the Internet Explorer executable.

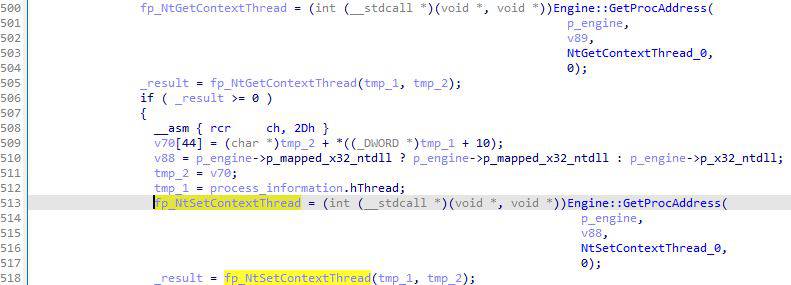

If not, the malware performs remote process hollowing with Werfault.exe. BLISTER follows standard techniques used for process hollowing.

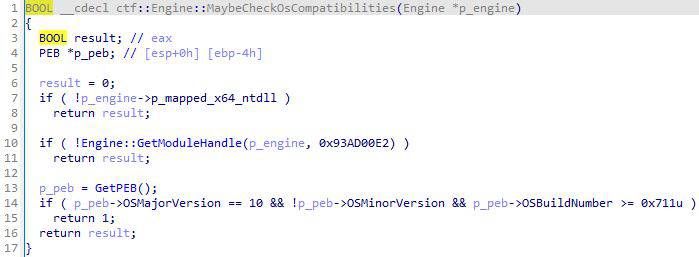

There is one path within this function: if certain criteria are met matching Windows OS versions and build numbers the hollowing technique is performed by dropping a temporary file on disk within the AppData folder titled Bg.Agent.ETW with an explicit extension.

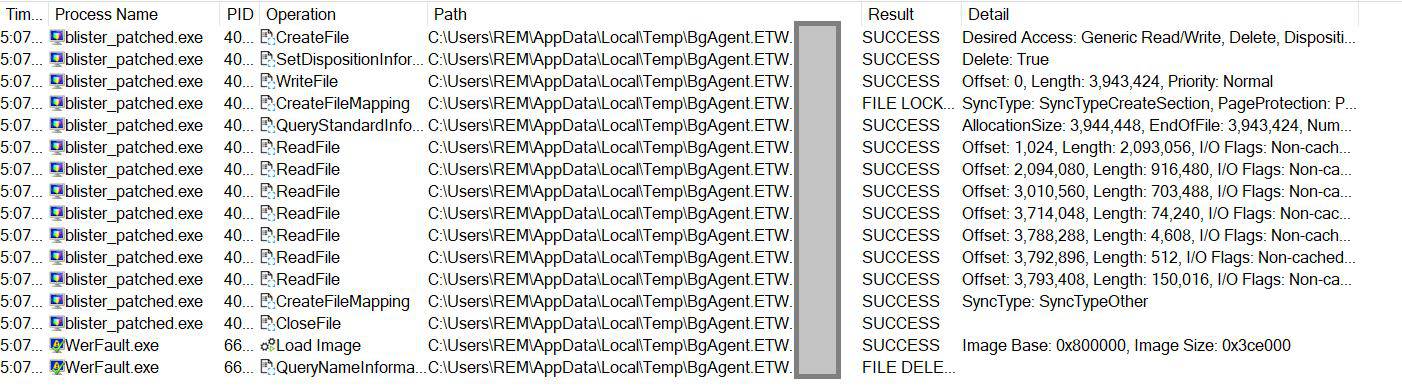

The malware uses this file to read and write malicious DLL to this file. Werfault.exe is started by BLISTER and then the contents of this temporary DLL are loaded into memory into the Werfault process and the file is shortly deleted after.

Configuration Extractor

Automating the configuration and payload extraction from BLISTER is a key aspect when it comes to threat hunting as it gives visibility of the campaign and the malware deployed by the threat actors which enable us to discover new unknown samples and Cobalt Strike instances in a timely manner.

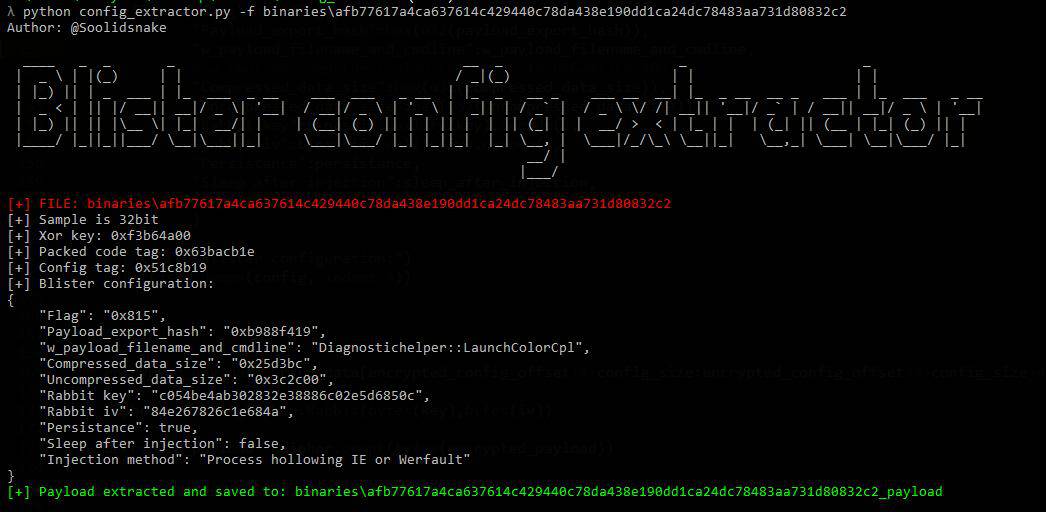

Our extractor uses a Rabbit stream cipher implementation and takes either a directory of samples with -d option or -f for a single sample,

To enable the community to further defend themselves against existing and new variants of the BLISTER loader, we are making the configuration extractor open source under the Apache 2 License. The configuration extractor documentation and binary download can be accessed here.

Conclusion

BLISTER continues to be a formidable threat, punching above its own weight class, distributing popular malware families and implants leading to major compromises. Elastic Security has been tracking BLISTER for months and we see no signs of this family slowing down.

From reversing BLISTER, our team was able to identify key functionality such as different injection methods, multiple techniques for defense evasion using anti-debug/anti-analysis features and heavy reliance on Windows Native API’s. We also are releasing a configuration extractor that can statically retrieve actionable information from BLISTER samples as well as dump out the embedded payloads.

Appendix

Configuration Structure

BLISTER configuration structure

struct Config {
  uint16_t flag;
  uint32_t payload_export_hash;
  wchar_t w_payload_filename_and_cmdline[783];
  size_t compressed_data_size;
  size_t uncompressed_data_size;
  uint8_t pe_deciphering_key[16];
  uint8_t pe_deciphering_iv[8];
};

Configuration’s Flags

BLISTER configuration files

enum Config::Flags {
  kDoPersistance = 0x1,
  kOwnProcessReflectiveInjectionMethod = 0x2,
  kOwnProcessHollowingMethod = 0x8,
  kRemoteProcessHollowingMethod = 0x10,
  kExecutePayloadExport = 0x20,
  kExecuteShellcodeMethod = 0x40,
  kInjectWithCmdLine = 0x80,
  kSleepAfterInjection = 0x100,
  kEnableSleepBasedAntiDebug = 0x800,
};

Hashing Algorithm

BLISTER hashing algorithm

uint32_t HashLibraryName(wchar_t *name) {
  uint32_t name {0};
  while (*name) {
 hash = ((hash >> 23) | (hash  << 9)) + *name++;
  }
  return hash ;
}

Indicators

YARA Rule

This updated YARA rule has shown a 13% improvement in detection rates.

BLISTER YARA rule

rule Windows_Trojan_BLISTER {
    meta:
        Author = "Elastic Security"
        creation_date = "2022-04-29"
        last_modified = "2022-04-29"
        os = "Windows"
        arch = "x86"
        category_type = "Trojan"
        family = "BLISTER"
        threat_name = "Windows.Trojan.BLISTER"
        description = "Detects BLISTER loader."
        reference_sample = "afb77617a4ca637614c429440c78da438e190dd1ca24dc78483aa731d80832c2"

    strings:
        $a1 = { 8D 45 DC 89 5D EC 50 6A 04 8D 45 F0 50 8D 45 EC 50 6A FF FF D7 }
        $a2 = { 75 F7 39 4D FC 0F 85 F3 00 00 00 64 A1 30 00 00 00 53 57 89 75 }
        $a3 = { 78 03 C3 8B 48 20 8B 50 1C 03 CB 8B 78 24 03 D3 8B 40 18 03 FB 89 4D F8 89 55 E0 89 45 E4 85 C0 74 3E 8B 09 8B D6 03 CB 8A 01 84 C0 74 17 C1 C2 09 0F BE C0 03 D0 41 8A 01 84 C0 75 F1 81 FA B2 17 EB 41 74 27 8B 4D F8 83 C7 02 8B 45 F4 83 C1 04 40 89 4D F8 89 45 F4 0F B7 C0 3B 45 E4 72 C2 8B FE 8B 45 04 B9 }
        $b1 = { 65 48 8B 04 25 60 00 00 00 44 0F B7 DB 48 8B 48 ?? 48 8B 41 ?? C7 45 48 ?? ?? ?? ?? 4C 8B 40 ?? 49 63 40 ?? }
        $b2 = { B9 FF FF FF 7F 89 5D 40 8B C1 44 8D 63 ?? F0 44 01 65 40 49 2B C4 75 ?? 39 4D 40 0F 85 ?? ?? ?? ?? 65 48 8B 04 25 60 00 00 00 44 0F B7 DB }
    condition:
        any of them
}

References

• https://www.elastic.co/blog/elastic-security-uncovers-blister-malware-campaign
• https://www.trendmicro.com/en_us/research/22/d/Thwarting-Loaders-From-SocGholish-to-BLISTERs-LockBit-Payload.html
• https://redcanary.com/threat-detection-report/threats/socgholish/

Artifacts

Artifacts are also available for download in both ECS and STIX format in a combined zip bundle.
